HCC1002

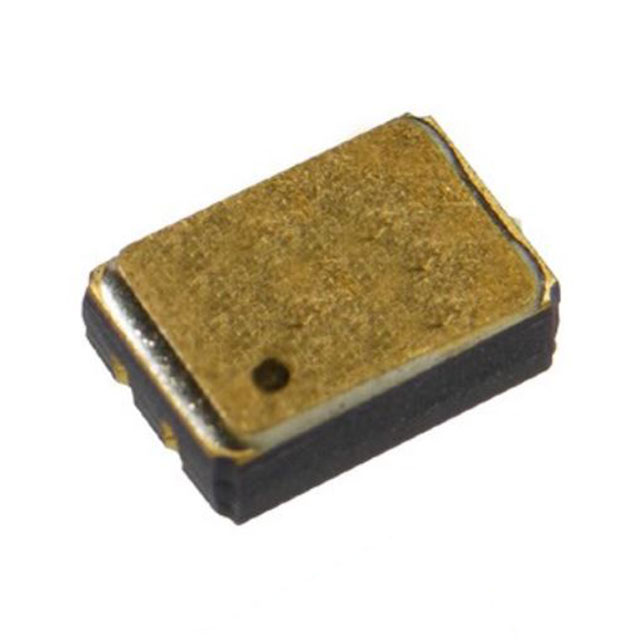

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCC1002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCC1002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCC1002 |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | RADIATION CAPABLE OPTOISOLATOR 4 |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $21.906 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCC1002 | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | RADIATION CAPABLE OPTOISOLATOR 4 | Lead Free Status / RoHS Status | |
| Quantity Available | 1550 pcs | Data sheet | HCC1002 |
| Category | Isolators | Voltage - Output (Max) | 40V |
| Voltage - Isolation | 1000VDC | Voltage - Forward (Vf) (Typ) | 1.9V (Max) |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-LCC (3.81x5.59) | Series | - |
| Rise / Fall Time (Typ) | 20µs, 20µs (Max) | Packaging | Tray |
| Package / Case | 4-CLCC | Output Type | - |
| Operating Temperature | -55°C ~ 150°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Manufacturer Standard Lead Time | 12 Weeks |
| Input Type | DC | Detailed Description | RADIATION CAPABLE OPTOISOLATOR 4 |
| Current Transfer Ratio (Min) | - | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 40mA |
