3C91CTX

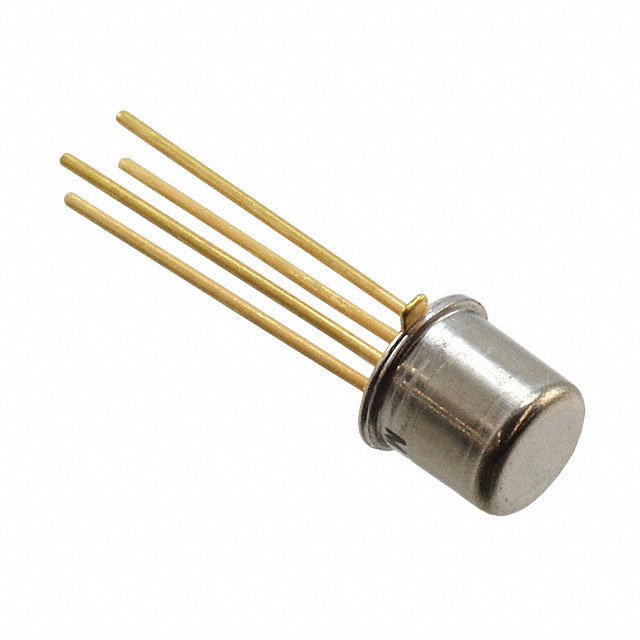

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3C91CTX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3C91CTX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3C91CTX |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | OPTOISOLATOR 1KV TRANS TO72-4 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3C91CTX | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | OPTOISOLATOR 1KV TRANS TO72-4 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6034 pcs | Data sheet | 3C9(1C,2C),3N243,244,245,261,262,263(TX,TXV) |
| Category | Isolators | Voltage - Output (Max) | 50V |
| Voltage - Isolation | 1000VDC | Voltage - Forward (Vf) (Typ) | 1.2V (Max) |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 9µs, 6µs (Max) |
| Supplier Device Package | TO-72-4 | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Bulk |
| Package / Case | TO-206AF, TO-72-4 Metal Can | Output Type | Transistor |
| Operating Temperature | -55°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 1000VDC 1 Channel TO-72-4 | Current Transfer Ratio (Min) | 30% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA | Current - Output / Channel | 30mA |
| Current - DC Forward (If) (Max) | 50mA |
