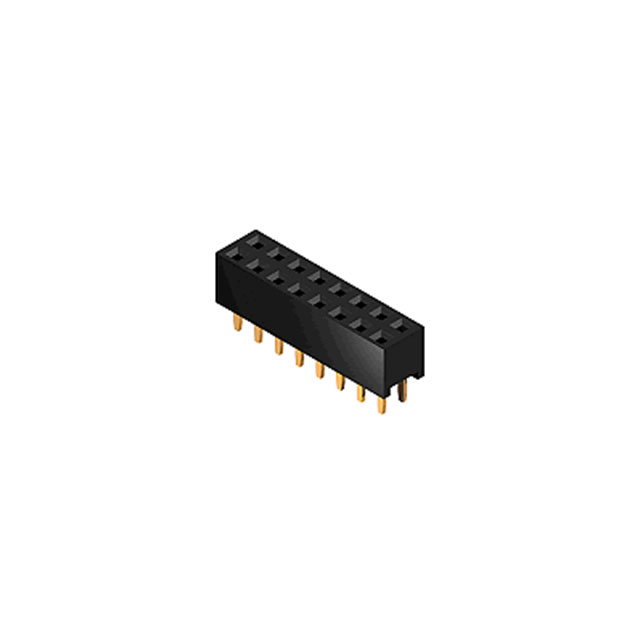

SH2-16G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH2-16G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH2-16G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH2-16G |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | RECEPT .100" DUAL ROW 16 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.202 | $0.19 | $0.146 | $0.127 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.105 | $0.092 | $0.086 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH2-16G | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | RECEPT .100" DUAL ROW 16 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 222197 pcs | Data sheet | SH Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Series | SH | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | ED3071 Q5893317 SH2-16G-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.331" (8.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.124" (3.15mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
