SBL-13OZ

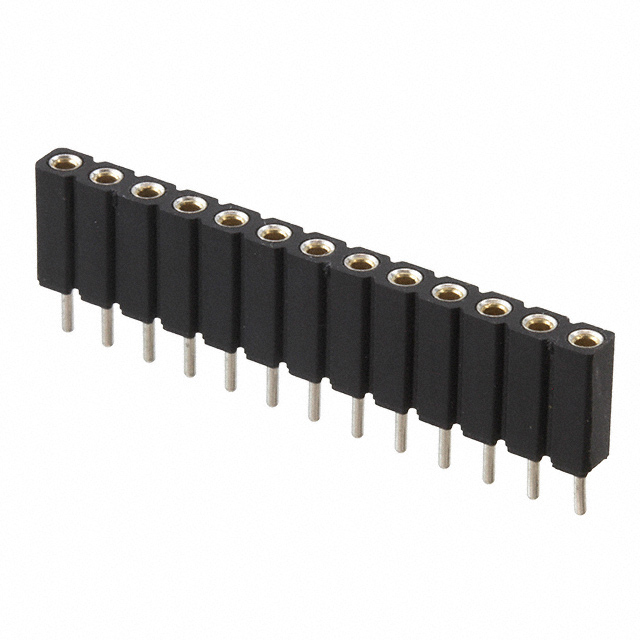

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBL-13OZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBL-13OZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBL-13OZ |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | MACHINED FEMALE HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $1.185 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBL-13OZ | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | MACHINED FEMALE HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31161 pcs | Data sheet | SBL, DBL Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Series | SBL | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | Q7646007 SBL-130Z |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 13 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
