Home > Products > Connectors, Interconnects > Sockets for ICs, Transistors > SA486000

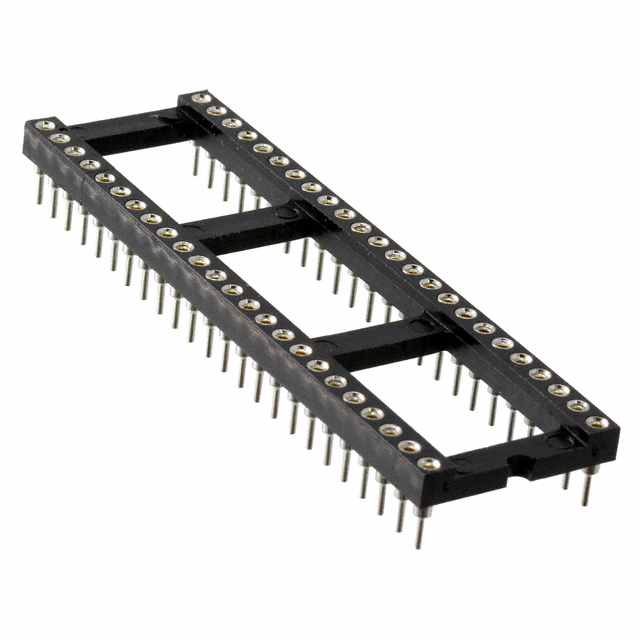

SA486000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA486000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SA486000
Manufacturer	On-Shore Technology, Inc.
Description	CONN IC DIP SOCKET 48POS GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	252 pcs	504 pcs	1008 pcs	2502 pcs
~~In Stock~~ 77809 pcs
Reference Price (In US Dollars)	1 pcs	18 pcs	27 pcs	54 pcs	108 pcs
	$0.863	$0.783	$0.735	$0.703	$0.671
	$0.607	$0.559	$0.48	$0.448

Product parameter
Data sheet

Product parameter

Part Number	SA486000	Manufacturer	On-Shore Technology, Inc.
Description	CONN IC DIP SOCKET 48POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77809 pcs	Data sheet	SAxzx0x0 Drawing
Category	Connectors, Interconnects	Type	DIP, 0.6" (15.24mm) Row Spacing
Termination Post Length	-	Termination	Solder
Series	SA	Pitch - Post	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Other Names	ED3034	Operating Temperature	-40°C ~ 105°C
Number of Positions or Pins (Grid)	48 (2 x 24)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Thermoplastic, Polyester, Glass Filled	Features	Open Frame
Current Rating	3A	Contact Resistance	4 mOhm
Contact Material - Post	Brass	Contact Material - Mating	Beryllium Copper
Contact Finish Thickness - Post	200.0µin (5.08µm)	Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
