OSTVN12A150

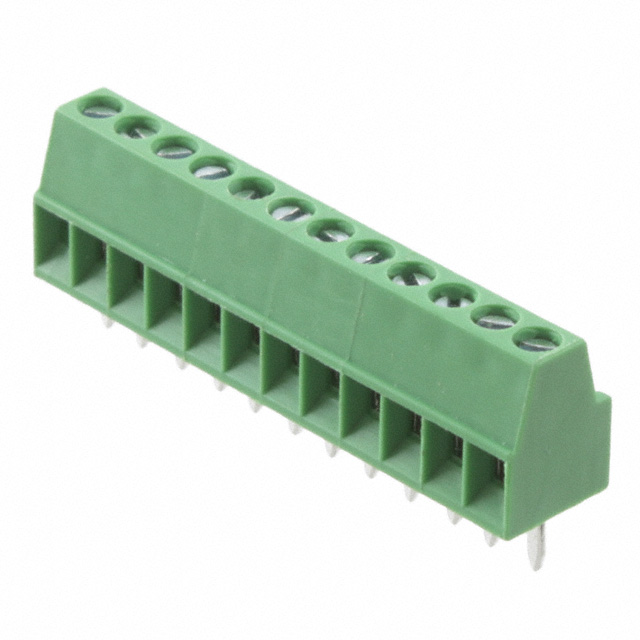

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTVN12A150 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTVN12A150 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTVN12A150 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN TERM BLOCK 2.54MM 12POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.32 | $1.005 | $0.941 | $0.837 | $0.818 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.755 | $0.682 | $0.605 | $0.568 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTVN12A150 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN TERM BLOCK 2.54MM 12POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68732 pcs | Data sheet | OSTVNxxA1x0 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 20-30 AWG | Voltage | 125V |
| Torque - Screw | 0.15 Nm (1.3 Lb-In) | Series | OSTVN |
| Screw Thread | M1.6 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 12 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | ED10568 OSTVN12A150-ND |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | - | Detailed Description | 12 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole |
| Current | 6A | Contact Material - Plating | Brass |
| Color | Green | Clamp Material - Plating | Brass |
