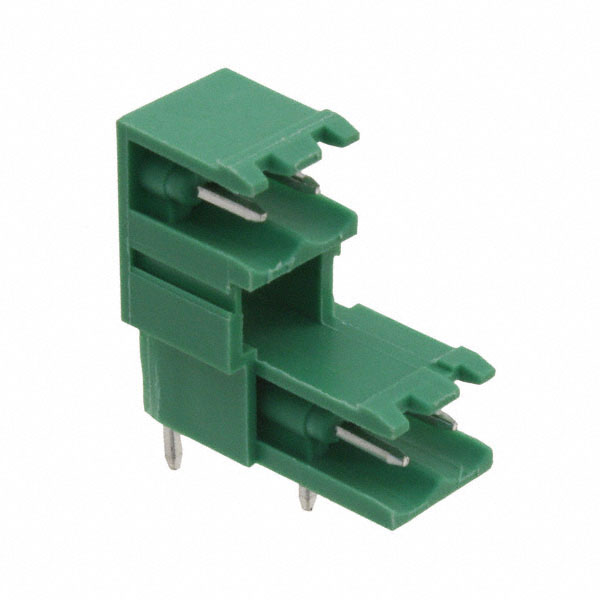

OSTVF045051
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTVF045051 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTVF045051 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTVF045051 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 4POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.445 | $0.276 | $0.237 | $0.213 | $0.208 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.177 | $0.168 | $0.151 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTVF045051 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 187596 pcs | Data sheet | OSTVFxx50x1 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (2 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | OSTVF | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | ED2763 OSTVF025051 |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 4 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.933" (23.70mm) |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Header Orientation | 90°, Right Angle | Features | Interlocking (Side) |
| Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | 0.157" (4.00mm) |
| Contact Mating Finish | Tin | Contact Material | Copper |
| Color | Green |
