OSTTS07315B

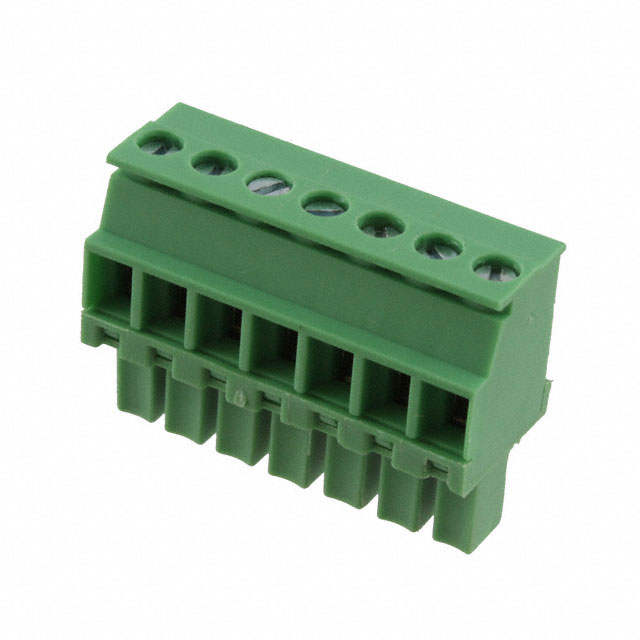

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTS07315B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTS07315B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTS07315B |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 7POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.152 | $0.878 | $0.822 | $0.731 | $0.715 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.659 | $0.596 | $0.528 | $0.496 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTS07315B | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 7POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74688 pcs | Data sheet | OSTTSxx31xB Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7mm |
| Wire Gauge or Range - mm² | 1.5mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | Termination Style | Screw |
| Series | OSTTS | Screw Size | - |
| Positions Per Level | 7 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | ED2899 OSTTS07315B-ND |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 7 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Brass |
| Header Orientation | - | Features | - |
| Detailed Description | 7 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line) | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Nickel |
| Contact Material | Brass | Color | Green |
