OSTTJ1011530

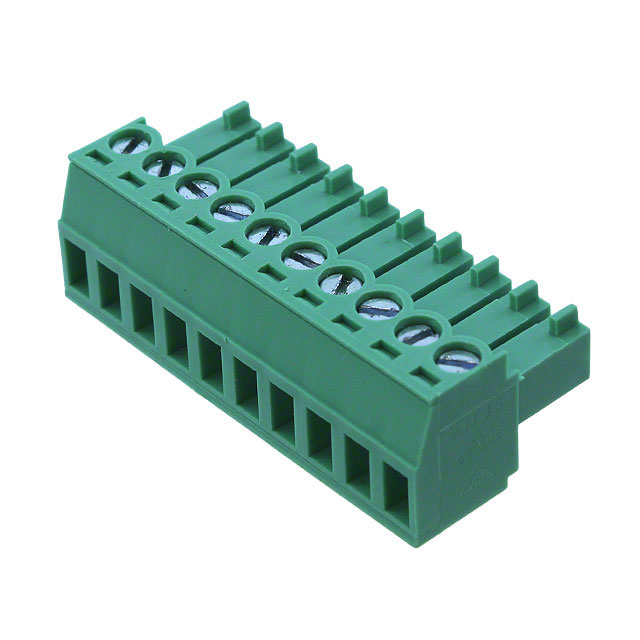

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTJ1011530 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTJ1011530 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTJ1011530 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 10POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.645 | $1.254 | $1.175 | $1.044 | $1.021 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.942 | $0.851 | $0.755 | $0.709 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTJ1011530 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 10POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42776 pcs | Data sheet | OSTTJxx11530 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 16-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.28 Nm (2.5 Lb-In) | Termination Style | Screw |
| Series | OSTTJ | Screw Size | - |
| Positions Per Level | 10 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | ED10559 OSTTJ1011530-ND |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 10 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Brass |
| Header Orientation | - | Features | - |
| Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) Free Hanging (In-Line) | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Brass | Color | - |
