OSTTF090161

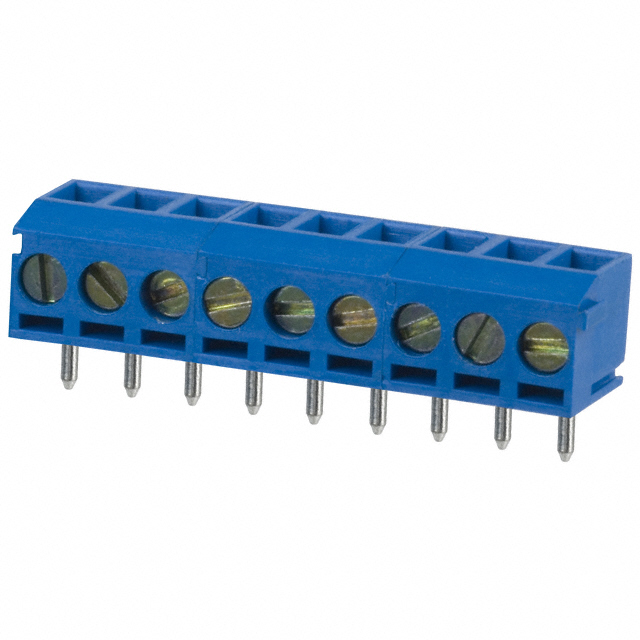

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTF090161 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTF090161 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTF090161 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK 3.5MM HOR 9POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $0.698 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTF090161 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK 3.5MM HOR 9POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46633 pcs | Data sheet | OSTTFxx01x1 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 16-26 AWG | Voltage | 125V |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | Series | OSTTF |
| Screw Thread | M2 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 9 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | ED2630 EDC550/9DS |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | Interlocking (Side) | Detailed Description | 9 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole |
| Current | 10A | Contact Material - Plating | Brass - Tin Plated |
| Color | Blue | Clamp Material - Plating | Steel, Stainless |
