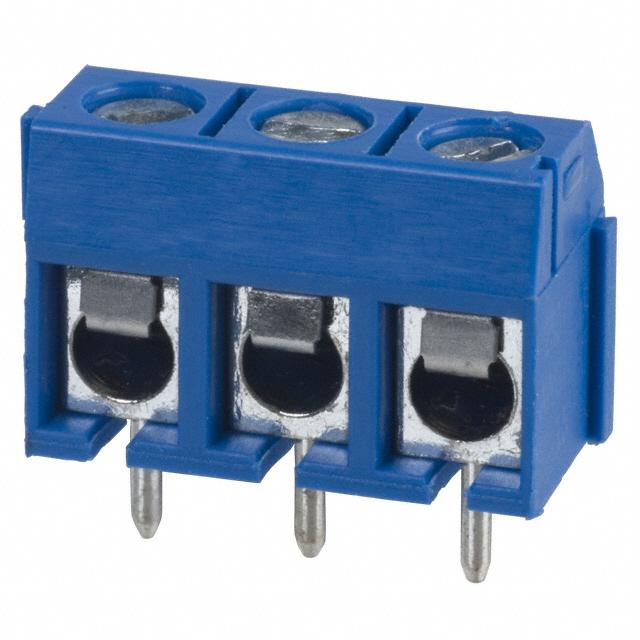

OSTTC030162
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTC030162 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTC030162 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTC030162 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM HORZ 3POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.377 | $0.235 | $0.201 | $0.181 | $0.177 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.151 | $0.143 | $0.128 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTC030162 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM HORZ 3POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 224888 pcs | Data sheet | OSTTCxx01x2 |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 14-22 AWG | Voltage | 300V |
| Torque - Screw | 0.3 Nm (2.6 Lb-In) | Series | OSTTC |
| Screw Thread | M2.6 | Screw Material - Plating | Steel - Zinc Plated |
| Positions Per Level | 3 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED2601 EDC500/3DS |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Features | Interlocking (Side) | Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole |
| Current | 15A | Contact Material - Plating | Tin Plated |
| Color | Blue | Clamp Material - Plating | Steel, Stainless |
