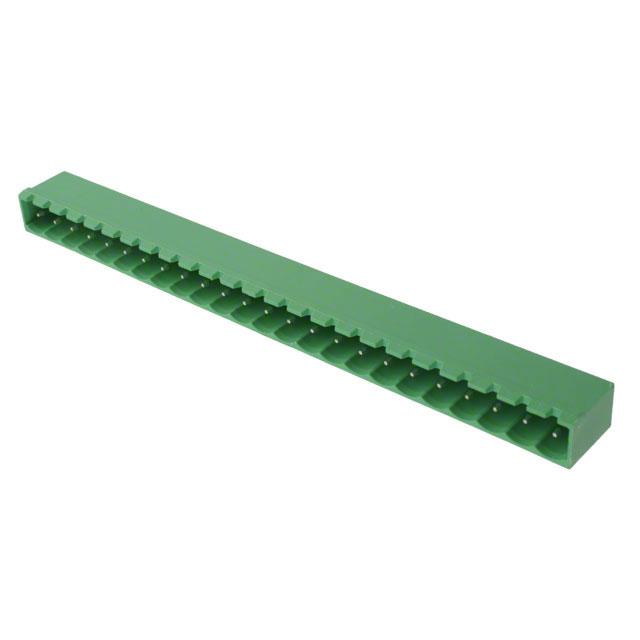

OSTOQ247151
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTOQ247151 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTOQ247151 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTOQ247151 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 24POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.93 | $0.705 | $0.653 | $0.587 | $0.573 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.501 | $0.458 | $0.415 | $0.365 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTOQ247151 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 24POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85843 pcs | Data sheet | OSTOQxx7151 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | - |
| Series | OSTOQ | Screw Size | - |
| Positions Per Level | 24 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED2762 | Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 24 | Number of Levels | 1 |
| Mounting Type | Solder | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.157" (4.00mm) |
| Ingress Protection | - | Housing Material | Brass |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Solder | Current - IEC | - |
| Contact Tail Length | 0.157" (4.00mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | - |
