EDZ950/14

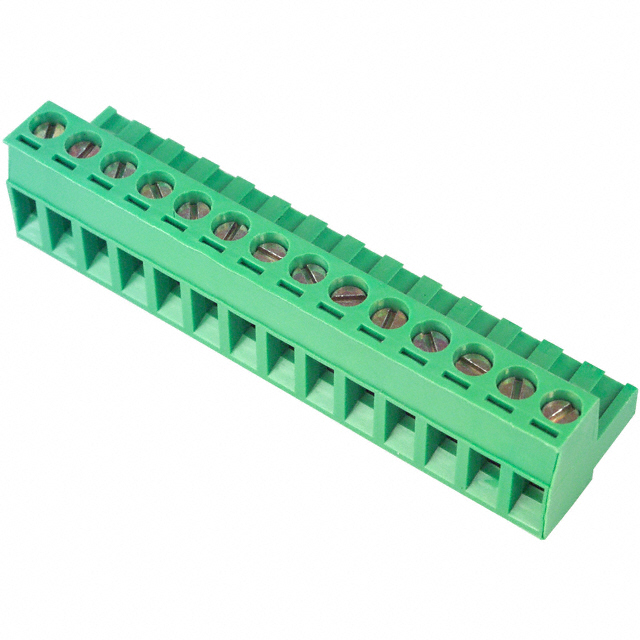

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDZ950/14 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDZ950/14 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDZ950/14 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 14POS STR 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.997 | $2.362 | $2.247 | $2.04 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.959 | $1.729 | $1.613 | $1.498 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDZ950/14 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 14POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23845 pcs | Data sheet | ED950/X, EDZ950/X |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 2.5mm² | Wire Gauge or Range - AWG | 12-22 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Termination Style | Screw |
| Series | EDZ950 | Screw Size | - |
| Positions Per Level | 14 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | ED1728 EDZ95014 |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 14 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 14 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line) | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Copper | Color | Green |
