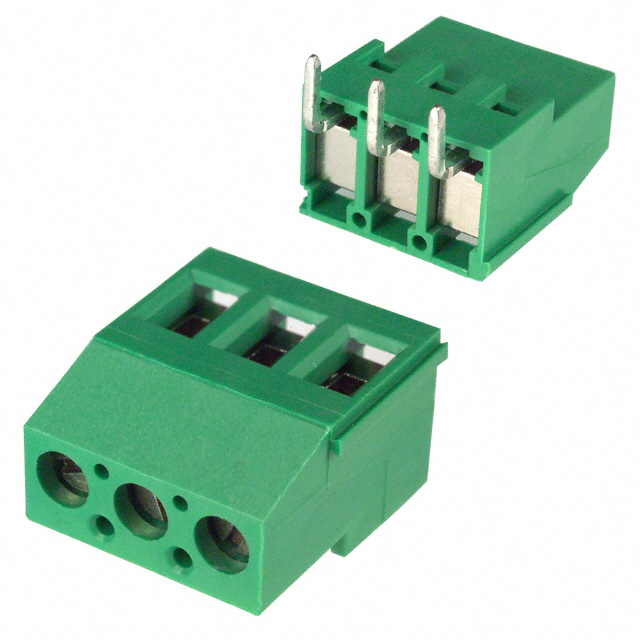

EDZ705/3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDZ705/3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDZ705/3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDZ705/3 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5.08MM 3POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $0.50 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDZ705/3 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5.08MM 3POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65295 pcs | Data sheet | ED705/X, EDZ705/X |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 14-22 AWG | Voltage | 300V |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Series | EDZ705 |
| Screw Thread | M3 | Screw Material - Plating | - |
| Positions Per Level | 3 | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | ED1978 EDZ7053 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side) | Detailed Description | 3 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole |
| Current | 15A | Contact Material - Plating | Brass |
| Color | Green | Clamp Material - Plating | Copper |
