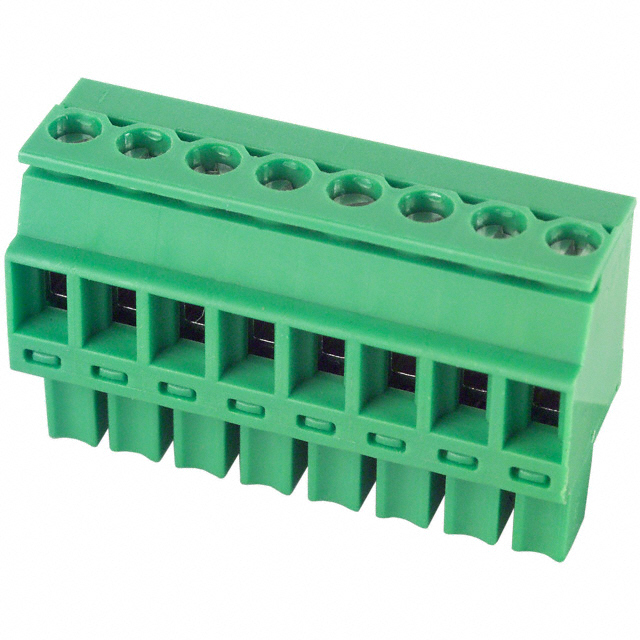

EDZ1710/8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDZ1710/8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDZ1710/8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDZ1710/8 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 8POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.005 | $1.529 | $1.432 | $1.273 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.246 | $1.149 | $1.038 | $0.92 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDZ1710/8 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33464 pcs | Data sheet | EDZ1710/-- |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 1.5mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Termination Style | Screw |
| Series | EDZ1710 | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | ED2472 EDZ17108 |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line) | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Copper Tin Alloy | Color | Green |
