EDSTLZ990/23

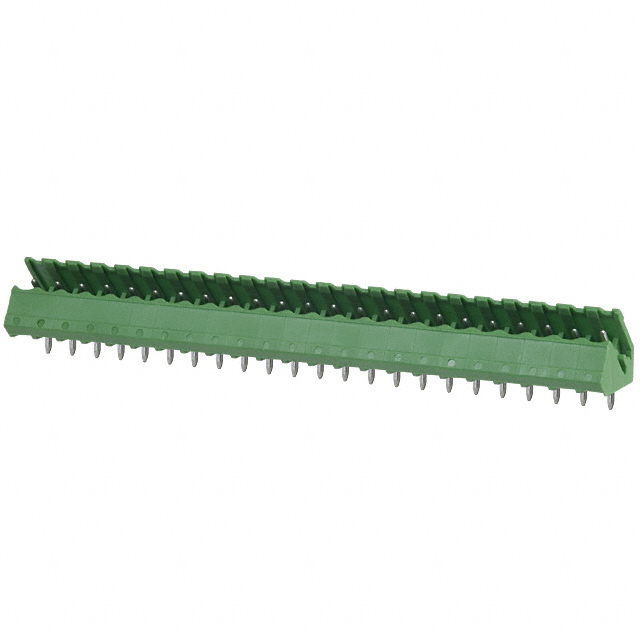

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDSTLZ990/23 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDSTLZ990/23 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDSTLZ990/23 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 23POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.522 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDSTLZ990/23 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 23POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22917 pcs | Data sheet | EDSTLZ990/X |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | - |
| Series | EDSTLZ990 | Screw Size | - |
| Positions Per Level | 23 | Plug Wire Entry | 45° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | ED1928 | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 23 | Number of Levels | 1 |
| Mounting Type | Solder | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.161" (4.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 45° | Features | - |
| Detailed Description | 23 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° 45° Solder | Current - IEC | - |
| Contact Tail Length | 0.161" (4.10mm) | Contact Mating Finish | - |
| Contact Material | - | Color | - |
