EDSTLZ955/4

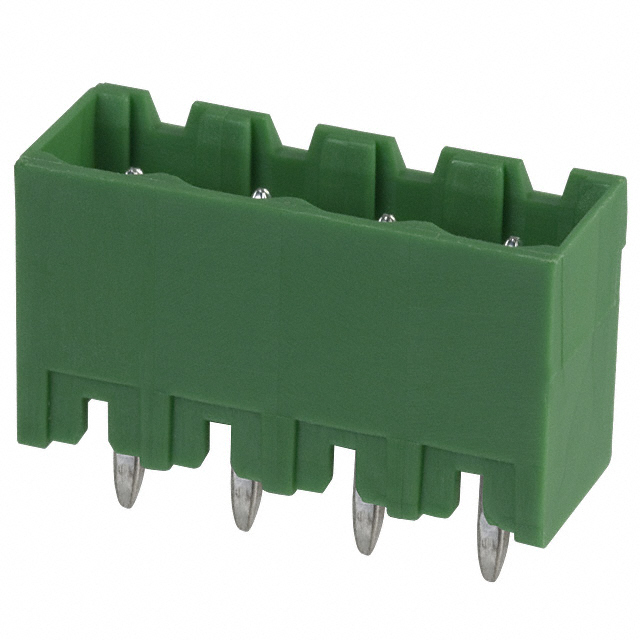

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDSTLZ955/4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDSTLZ955/4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDSTLZ955/4 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 4POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.481 | $0.337 | $0.314 | $0.285 | $0.284 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.24 | $0.227 | $0.202 | $0.164 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDSTLZ955/4 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132182 pcs | Data sheet | EDSTL955/X, EDSTLZ955/X |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | - |
| Series | EDSTLZ955 | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | ED1851 EDSTLZ9554 |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Solder | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.154" (3.90mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Solder | Current - IEC | - |
| Contact Tail Length | 0.154" (3.90mm) | Contact Mating Finish | - |
| Contact Material | - | Color | - |
