EDSTL130/11

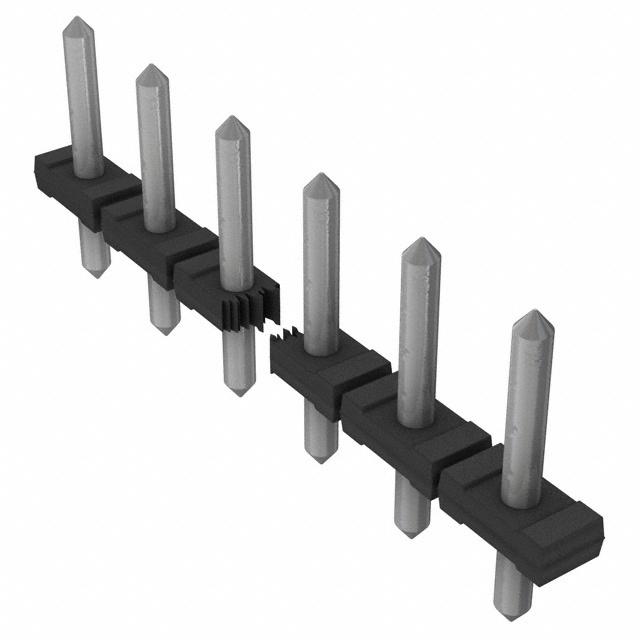

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDSTL130/11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDSTL130/11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDSTL130/11 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 11POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.79 | $0.706 | $0.582 | $0.46 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.395 | $0.36 | $0.346 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDSTL130/11 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 11POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65103 pcs | Data sheet | EDSTL(Z)130/x |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Unshrouded |
| Torque - Screw | - | Termination Style | Solder |
| Series | EDSTL130 | Screw Size | - |
| Positions Per Level | 11 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED1669 ED1669-ND ED1682-11 |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 11 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.079" (2.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 11 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | - |
| Contact Material | Copper Zinc Alloy | Color | Black |
