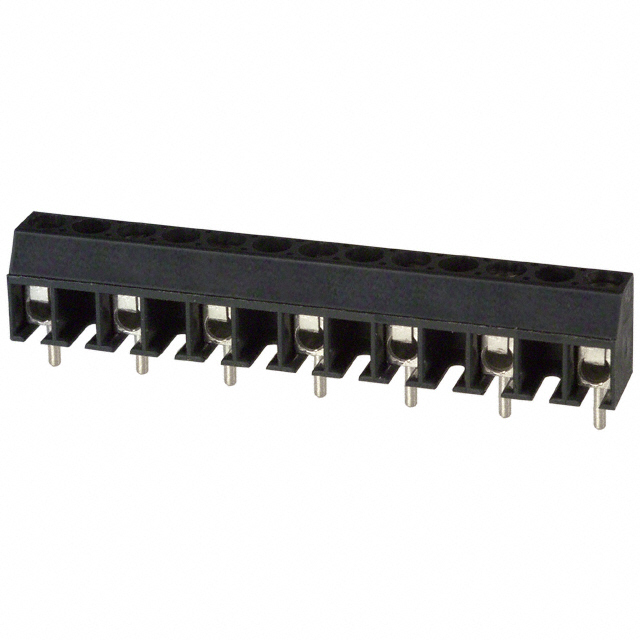

ED655/7DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED655/7DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED655/7DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED655/7DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 7MM VERT 7POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.575 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED655/7DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 7MM VERT 7POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68503 pcs | Data sheet | ED655/XDS |
| Category | Connectors, Interconnects | Wire Termination | Screw |
| Wire Gauge | 16-28 AWG | Voltage | 250V |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Series | ED655/DS |
| Screw Thread | M2 | Screw Material - Plating | - |
| Positions Per Level | 7 | Pitch | 0.276" (7.00mm) |
| Packaging | Bulk | Other Names | ED1539 ED655/7 ED6557DS |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | - | Detailed Description | 7 Position Wire to Board Terminal Block Horizontal with Board 0.276" (7.00mm) Through Hole |
| Current | 6A | Contact Material - Plating | Brass |
| Color | Gray | Clamp Material - Plating | Copper Tin Alloy |
