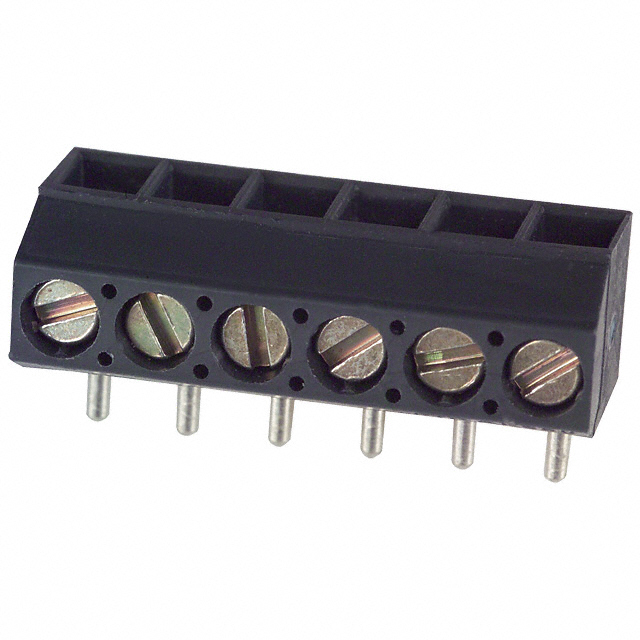

ED550/6DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED550/6DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED550/6DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED550/6DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 3.5MM 6POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.737 | $0.557 | $0.516 | $0.464 | $0.453 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.396 | $0.362 | $0.328 | $0.289 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED550/6DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 3.5MM 6POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77226 pcs | Data sheet | ED550/XDS |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 16-28 AWG | Voltage | 125V |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Series | ED550/DS |
| Screw Thread | M2 | Screw Material - Plating | - |
| Positions Per Level | 6 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | ED1505 ED550/6 ED5506DS |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | - | Detailed Description | 6 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole |
| Current | 6A | Contact Material - Plating | Brass |
| Color | Gray | Clamp Material - Plating | Steel, Stainless |
