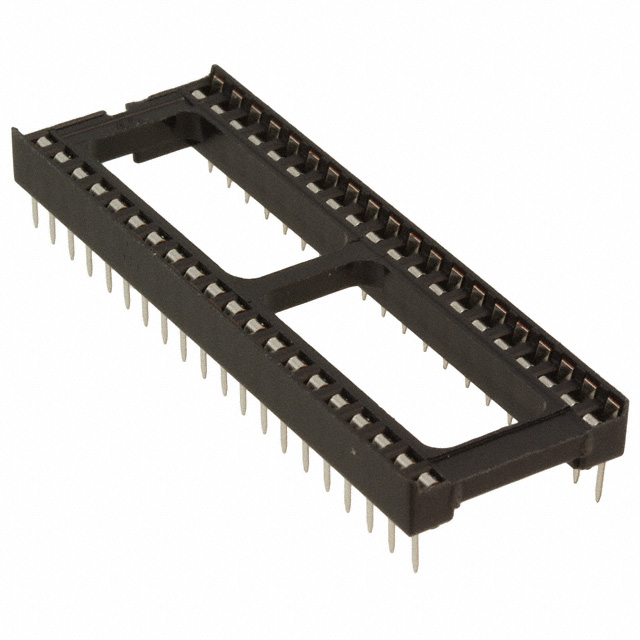

ED40DT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED40DT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED40DT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED40DT |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN IC DIP SOCKET 40POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 36 pcs | 60 pcs | 108 pcs |
|---|---|---|---|---|---|
| $0.171 | $0.163 | $0.14 | $0.119 | $0.114 | |
| 252 pcs | 504 pcs | 1008 pcs | 2508 pcs | ||
| $0.102 | $0.098 | $0.081 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED40DT | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 40POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 275764 pcs | Data sheet | ED SeriesED Series Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | ED | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED3048-5 | Operating Temperature | -55°C ~ 110°C |
| Number of Positions or Pins (Grid) | 40 (2 x 20) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 20 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
