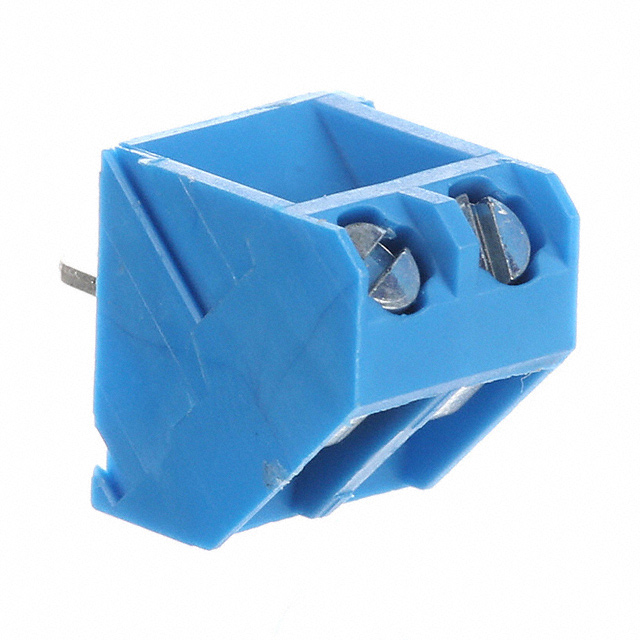

ED300/2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED300/2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED300/2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED300/2 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM 2POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.416 | $0.293 | $0.273 | $0.248 | $0.247 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.208 | $0.197 | $0.175 | $0.142 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED300/2 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145405 pcs | Data sheet | ED300/X, EDZ300/X |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-22 AWG | Voltage | 300V |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Series | ED300 |
| Screw Thread | M2.6 | Screw Material - Plating | - |
| Positions Per Level | 2 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED1619 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | 45° (135°) Angle with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side) | Detailed Description | 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current | 15A | Contact Material - Plating | Brass |
| Color | Blue | Clamp Material - Plating | Copper |
