ED1550/10

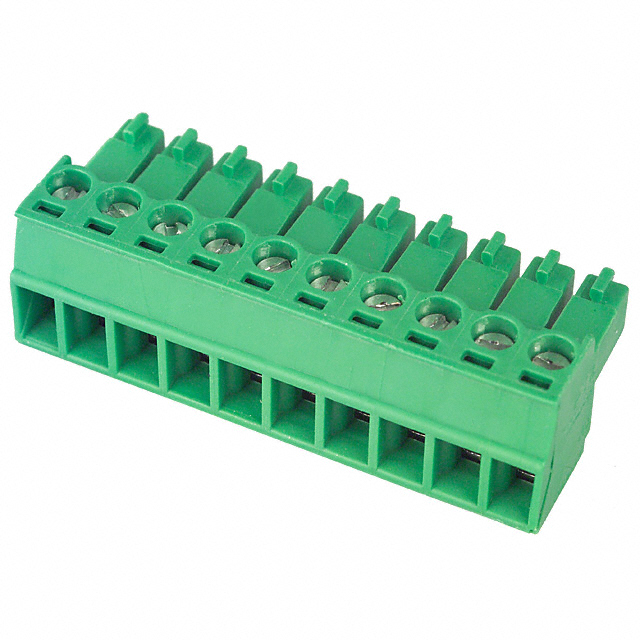

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED1550/10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED1550/10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED1550/10 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 10POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.84 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED1550/10 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 10POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16365 pcs | Data sheet | ED1550/X, EDZ1550/X Series Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 1.5mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Termination Style | Screw |
| Series | ED1550 | Screw Size | M2 |
| Positions Per Level | 10 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | Q1857241 | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 10 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Copper Tin Alloy |
| Color | Green |
