ED130/7DS

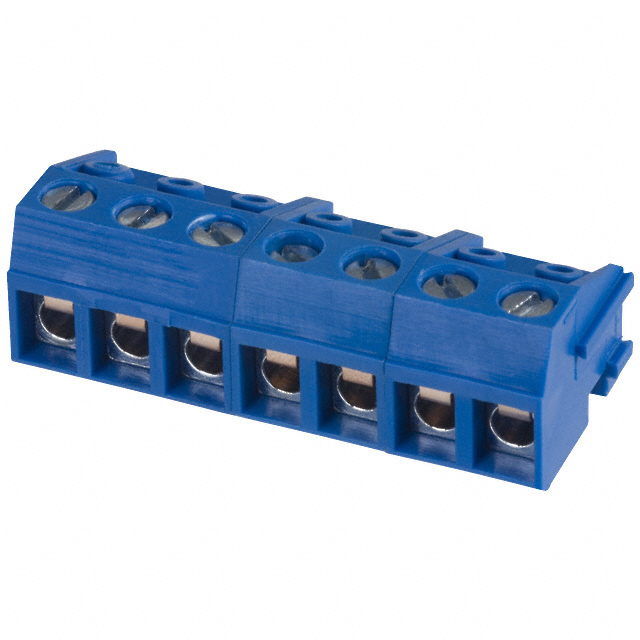

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED130/7DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED130/7DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED130/7DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 7POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $0.747 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED130/7DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 7POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39811 pcs | Data sheet | ED130/XDS |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 1.5mm² | Wire Gauge or Range - AWG | 14-22 AWG |
| Voltage - UL | 300V | Type | Plug for Unshrouded Header |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Termination Style | Screw |
| Series | ED130 | Screw Size | M2.6 |
| Positions Per Level | 7 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED2217 | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 7 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.425" (10.80mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Interlocking (Side) |
| Detailed Description | 7 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Copper Beryllium |
| Color | Blue |
