ED114/11DS

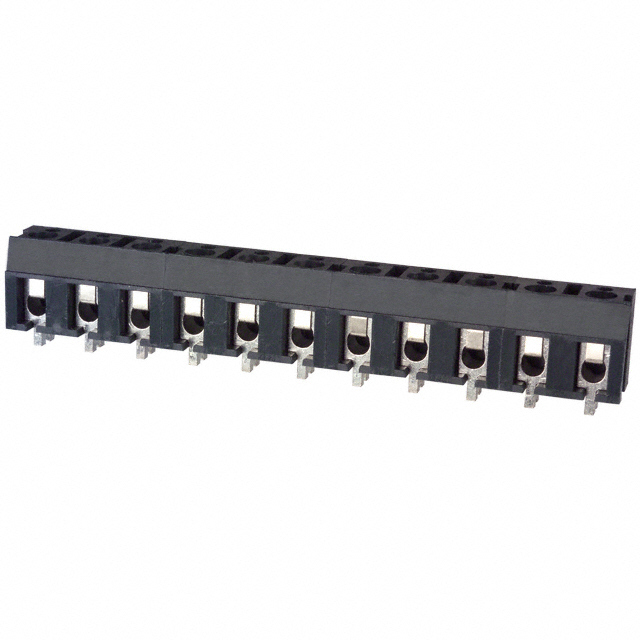

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED114/11DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED114/11DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED114/11DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 7.50MM VERT 11POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.415 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED114/11DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 7.50MM VERT 11POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23782 pcs | Data sheet | ED114/XDS |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 12-22 AWG | Voltage | 300V |
| Torque - Screw | 0.8 Nm (7.1 Lb-In) | Series | ED114/DS |
| Screw Thread | M3 | Screw Material - Plating | - |
| Positions Per Level | 11 | Pitch | 0.295" (7.50mm) |
| Packaging | Bulk | Other Names | ED1576 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side) | Detailed Description | 11 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole |
| Current | 15A | Contact Material - Plating | Brass |
| Color | Gray | Clamp Material - Plating | Steel, Stainless |
