ED1100/4

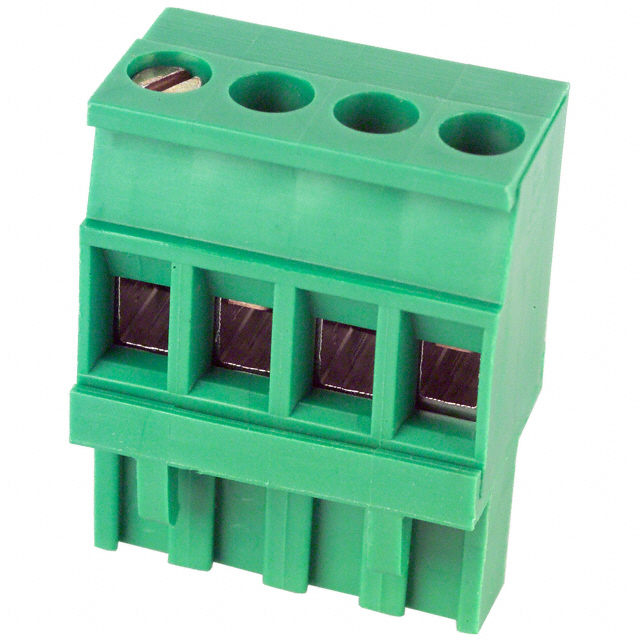

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED1100/4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED1100/4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED1100/4 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 4POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.57 | $1.196 | $1.12 | $0.995 | $0.974 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.898 | $0.812 | $0.72 | $0.676 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED1100/4 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 4POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48220 pcs | Data sheet | ED1100/X, EDZ1100/X |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 2.5mm² | Wire Gauge or Range - AWG | 10-22 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Termination Style | Screw |
| Series | ED1100 | Screw Size | M3 |
| Positions Per Level | 4 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED2378 | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.043" (26.50mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Wire Side) |
| Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Copper Tin Alloy |
| Color | Green |
