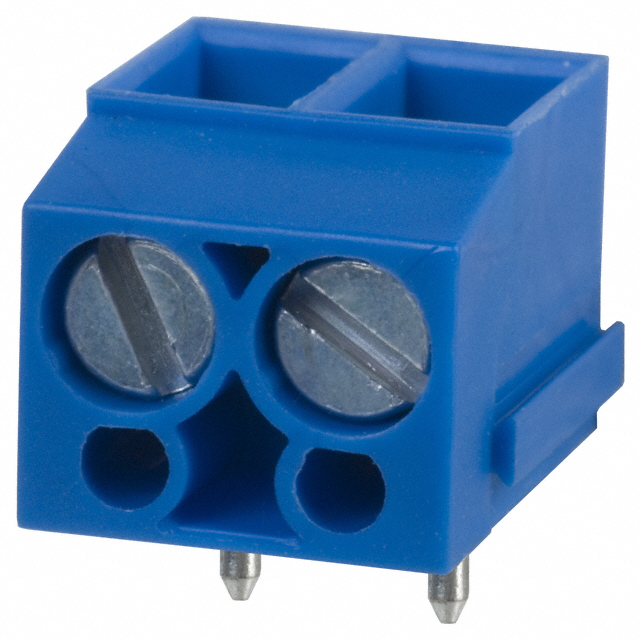

ED105/2DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED105/2DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED105/2DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED105/2DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM HORZ 2POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.223 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED105/2DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM HORZ 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102466 pcs | Data sheet | ED105/XDS |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 14-22 AWG | Voltage | 300V |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Series | ED105/DS |
| Screw Thread | M3 | Screw Material - Plating | - |
| Positions Per Level | 2 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED105-2DS ED1052DS ED1603 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side) | Detailed Description | 2 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole |
| Current | 15A | Contact Material - Plating | Brass |
| Color | Blue | Clamp Material - Plating | Steel, Stainless |
