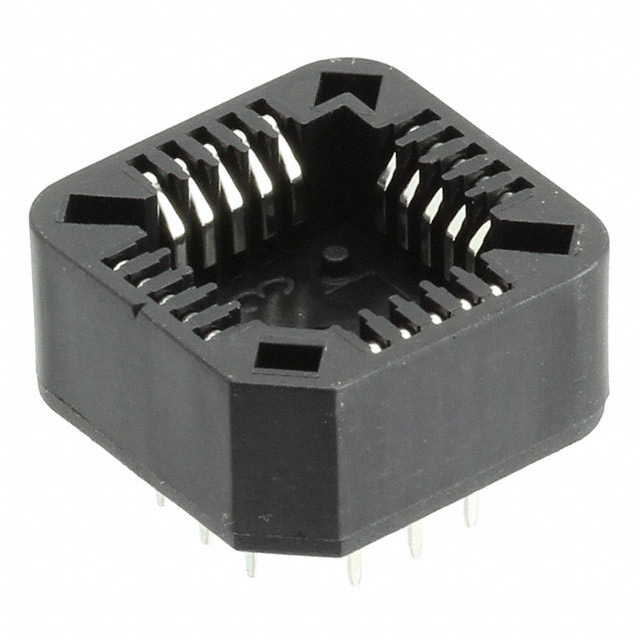

ED020PLCZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED020PLCZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED020PLCZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED020PLCZ |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN SOCKET PLCC 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 37 pcs | 74 pcs | 111 pcs |
|---|---|---|---|---|---|
| $0.281 | $0.263 | $0.237 | $0.211 | $0.202 | |
| 259 pcs | 518 pcs | 1036 pcs | 2516 pcs | ||
| $0.184 | $0.176 | $0.145 | $0.132 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED020PLCZ | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 166297 pcs | Data sheet | ED0-xxPLCZ Drawing |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.118" (3.00mm) | Termination | Solder |
| Series | ED | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED20PLCZ ED3062-5 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (4 x 5) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
