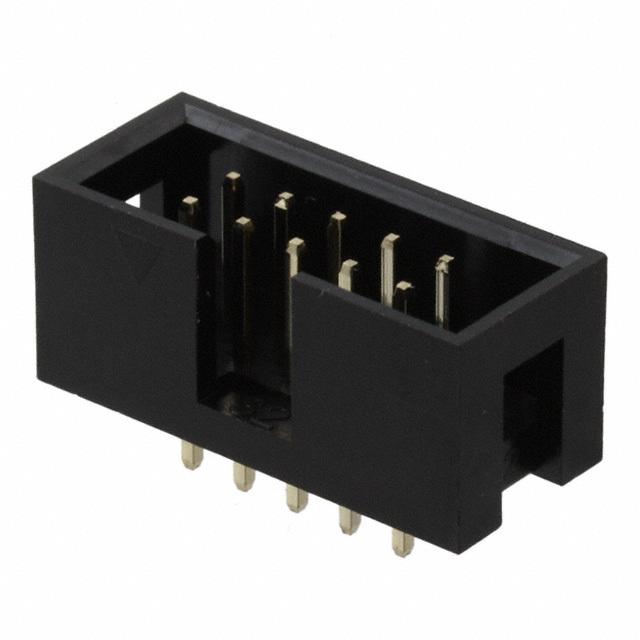

302-S101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302-S101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302-S101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302-S101 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN HEADER VERT 10POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.112 | $0.106 | $0.074 | $0.064 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.053 | $0.045 | $0.042 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302-S101 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN HEADER VERT 10POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 479020 pcs | Data sheet | 302-Sxx1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 302 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 302-S101-ND 302S101 ED1543 Q4818586 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.358" (9.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
