XW4L-12A1-V1

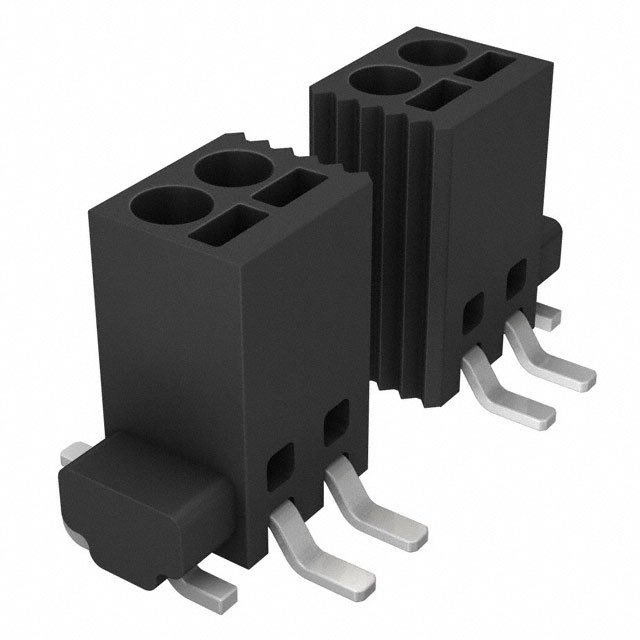

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XW4L-12A1-V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XW4L-12A1-V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XW4L-12A1-V1 |
|---|---|
| Manufacturer | Omron |
| Description | TERM BLOCK 12POS TOP 2.54MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $1.563 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XW4L-12A1-V1 | Manufacturer | Omron |
|---|---|---|---|
| Description | TERM BLOCK 12POS TOP 2.54MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20905 pcs | Data sheet | XW4H(4K,4L) Datasheet |
| Category | Connectors, Interconnects | Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Wire Gauge | 20-26 AWG | Voltage | 160V |
| Torque - Screw | - | Series | XW4 |
| Screw Thread | - | Screw Material - Plating | - |
| Positions Per Level | 12 | Pitch | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | XW4L12A1V1 |
| Operating Temperature | -45°C ~ 125°C | Number of Levels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide | Detailed Description | 12 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Surface Mount |
| Current | 6A | Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Black | Clamp Material - Plating | - |
