XW4K-06A1-H1

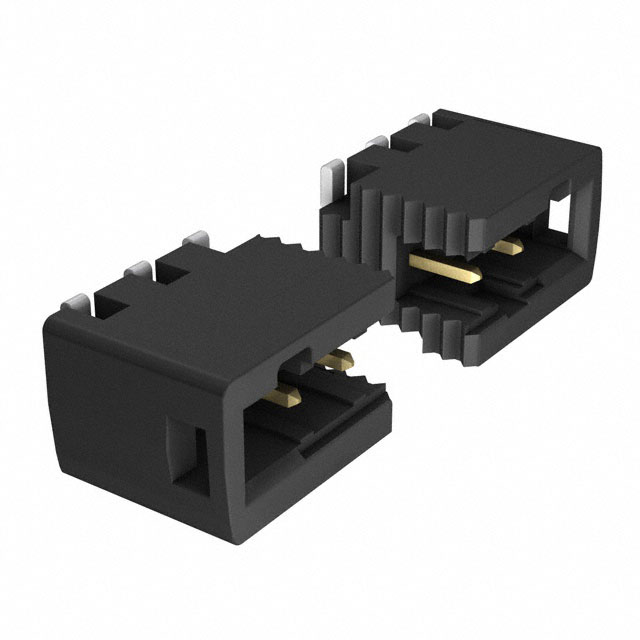

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XW4K-06A1-H1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XW4K-06A1-H1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XW4K-06A1-H1 |
|---|---|
| Manufacturer | Omron |
| Description | TERM BLOCK HDR 6POS 90DEG 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 1800 pcs | 3000 pcs | 6000 pcs |
|---|---|---|---|---|---|
| $0.703 | $0.623 | $0.609 | $0.597 | $0.586 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | XW4K-06A1-H1 | Manufacturer | Omron |
|---|---|---|---|
| Description | TERM BLOCK HDR 6POS 90DEG 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61972 pcs | Data sheet | XW4H(4K,4L) Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² | Wire Gauge or Range - AWG | 20-26 AWG |
| Voltage - UL | 160V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | XW4 | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | - |
| Pitch | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | XW4K-06A1-H1-ND XW4K06A1H1 Z5631 Z5631-ND Z5631TR |
Operating Temperature | -45°C ~ 125°C |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.293" (7.44mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | 90°, Right Angle | Features | Board Guide, Latches |
| Detailed Description | 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) 90°, Right Angle Surface Mount | Current - UL | 6A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
