XW4H-09A1

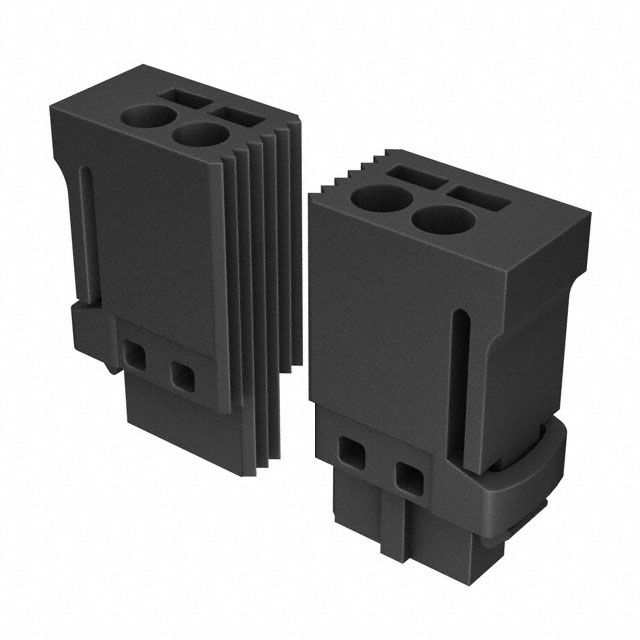

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XW4H-09A1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XW4H-09A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XW4H-09A1 |
|---|---|
| Manufacturer | Omron |
| Description | TERM BLOCK PLUG 9POS STR 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $2.355 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XW4H-09A1 | Manufacturer | Omron |
|---|---|---|---|
| Description | TERM BLOCK PLUG 9POS STR 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14638 pcs | Data sheet | XW4H(4K,4L) Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² | Wire Gauge or Range - AWG | 20-26 AWG |
| Voltage - UL | 160V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | XW4 | Screw Size | - |
| Positions Per Level | 9 | Plug Wire Entry | 180° |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | XW4H09A1 | Operating Temperature | -45°C ~ 125°C |
| Number of Positions | 9 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.193" (4.90mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | - | Features | Latch Lock |
| Detailed Description | 9 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Free Hanging (In-Line) | Current - UL | 6A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
