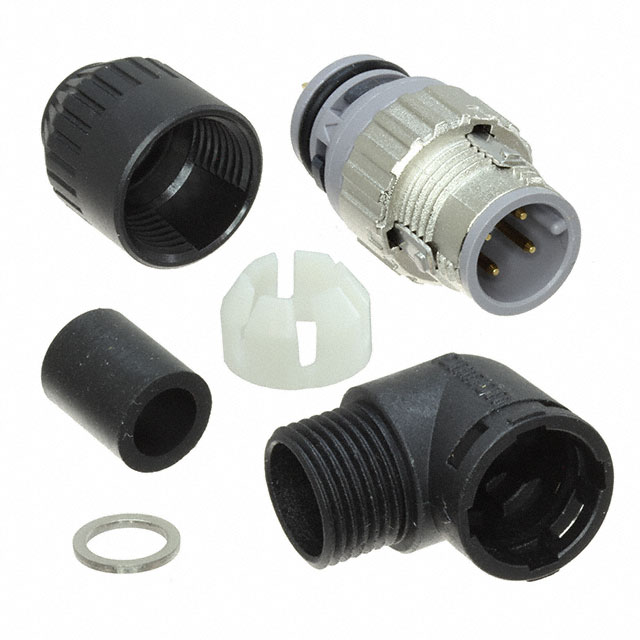

XS5G-D422
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XS5G-D422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XS5G-D422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XS5G-D422 |
|---|---|
| Manufacturer | Omron |
| Description | CONN PLUG MALE 4POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $6.074 | $5.641 | $5.063 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $4.918 | $4.339 | $4.179 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XS5G-D422 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN PLUG MALE 4POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7831 pcs | Data sheet | XS5 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250VDC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M12-4 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | XS5 | Packaging | Bulk |
| Other Names | XS5G-D422-ND XS5GD422 Z8793 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Push-Twist |
| Detailed Description | 4 Position Circular Connector Plug, Male Pins Solder Gold | Current Rating | 4A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 16.0µin (0.40µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black, Silver | Cable Opening | 0.197" ~ 0.236" (5.00mm ~ 6.00mm) |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) | Applications | - |
