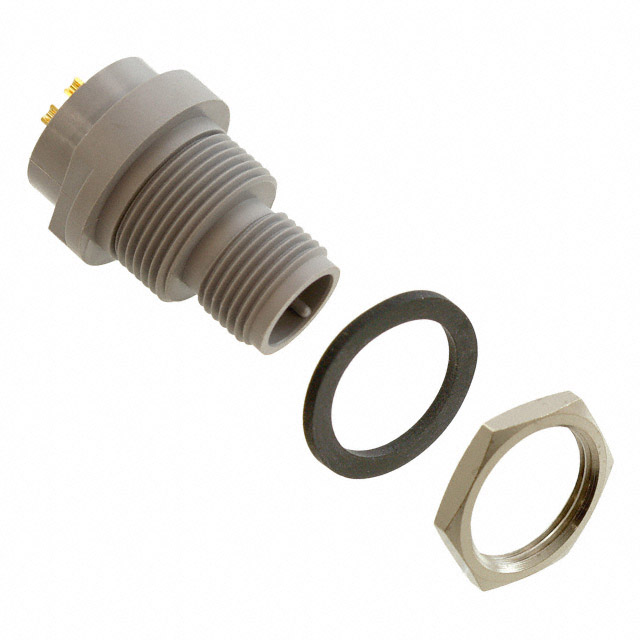

XS2M-D424-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XS2M-D424-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XS2M-D424-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XS2M-D424-2 |
|---|---|
| Manufacturer | Omron |
| Description | CONN PLUG MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.94 | $2.811 | $2.556 | $2.428 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.364 | $2.108 | $1.981 | $1.846 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XS2M-D424-2 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN PLUG MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17953 pcs | Data sheet | XS2 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 125VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M12-4 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | XS2 | Packaging | Bulk |
| Other Names | OR1090 XS2M-D424-2-ND XS2MD4242 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 4 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 3A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 16.0µin (0.40µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | 0.630" (16.00mm) |
| Backshell Material, Plating | - | Applications | - |
