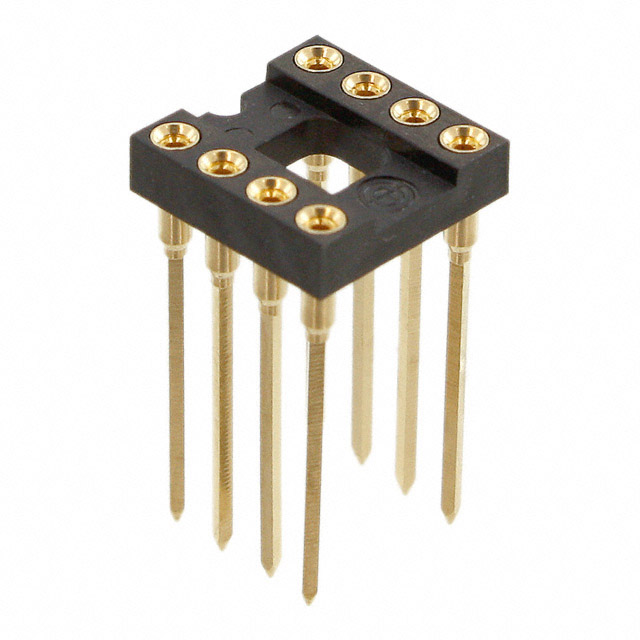

XR2A-0802
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XR2A-0802 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XR2A-0802 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XR2A-0802 |
|---|---|
| Manufacturer | Omron |
| Description | CONN IC DIP SOCKET 8POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.99 | $0.951 | $0.872 | $0.833 | $0.793 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.694 | $0.674 | $0.575 | $0.573 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XR2A-0802 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 8POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67356 pcs | Data sheet | XR2 Series |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.510" (12.95mm) | Termination | Wire Wrap |
| Series | XR2 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | OR1084 XR2A-0802-ND XR2A0802 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 8 (2 x 4) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 20 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 29.5µin (0.75µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
