XN2D-4471

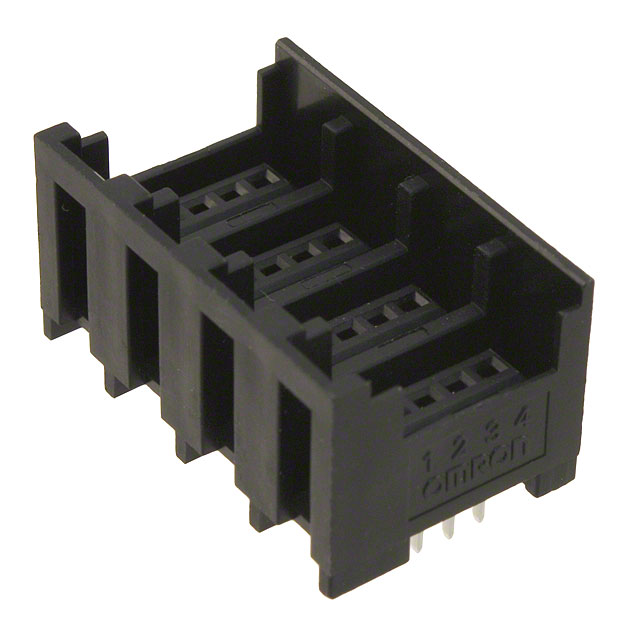

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XN2D-4471 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XN2D-4471 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XN2D-4471 |
|---|---|
| Manufacturer | Omron |
| Description | CONNECTOR SKT QUAD 4POS ECON PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.031 | $1.979 | $1.952 | $1.926 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.899 | $1.872 | $1.819 | $1.551 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XN2D-4471 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONNECTOR SKT QUAD 4POS ECON PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23871 pcs | Data sheet | XN2 |
| Category | Connectors, Interconnects | Voltage Rating | 32VDC |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Series | XN2 | Row Spacing - Mating | 0.256" (6.50mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | OR1031 XN2D4471 |
Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 16 (4 x 4 Ports) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | 16 (4 x 4 Ports) Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
