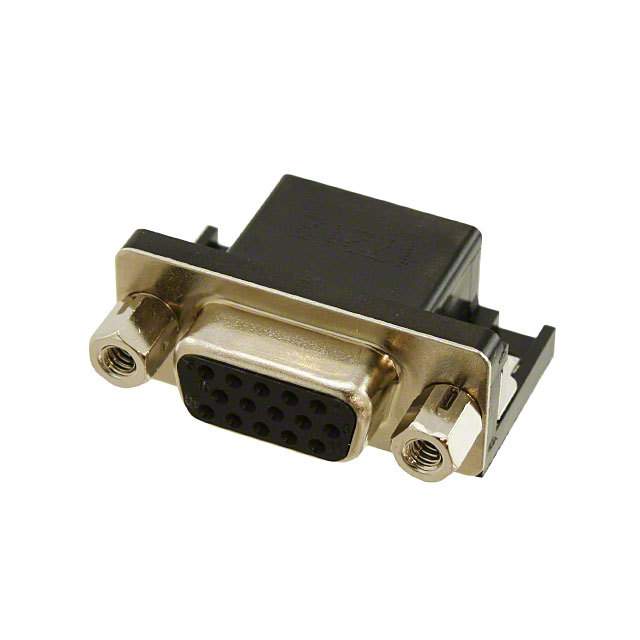

XM4L-1542-132
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM4L-1542-132 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM4L-1542-132 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM4L-1542-132 |
|---|---|
| Manufacturer | Omron |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.825 | $0.793 | $0.727 | $0.694 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.661 | $0.578 | $0.562 | $0.479 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM4L-1542-132 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64560 pcs | Data sheet | XM3-L, XM2-L, XM4(K,L) Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel |
| Series | XM4L | Packaging | Bulk |
| Other Names | OR1096 XM4L-1542-132-ND XM4L1542132 XM4L1542132NC |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock, Shielded |
| Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | 0.350" (8.89mm) |
