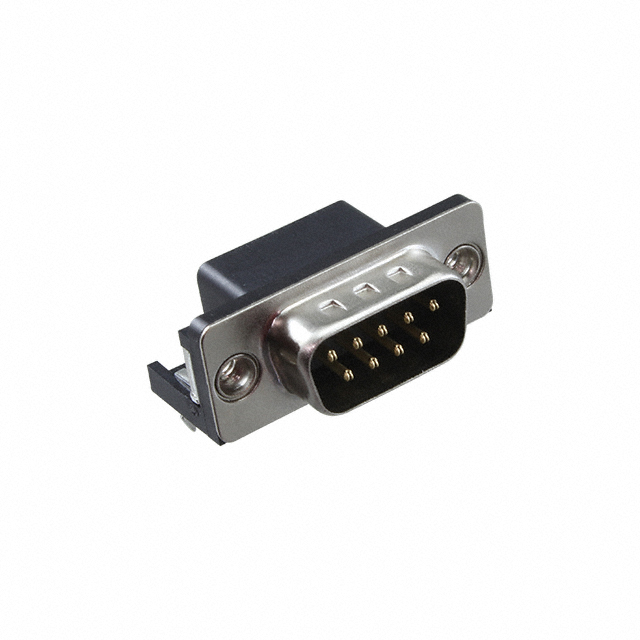

XM2C-0942-502L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XM2C-0942-502L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XM2C-0942-502L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XM2C-0942-502L |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB PLUG 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.718 | $0.651 | $0.611 | $0.585 | $0.558 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.505 | $0.465 | $0.399 | $0.384 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XM2C-0942-502L | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80320 pcs | Data sheet | XM3-L, XM2-L, XM4(K,L) Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | XM2C | Packaging | Bulk |
| Other Names | XM2C0942502L XM2C0942502L-ND Z8760 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents, Shielded | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
