XG8T-0831

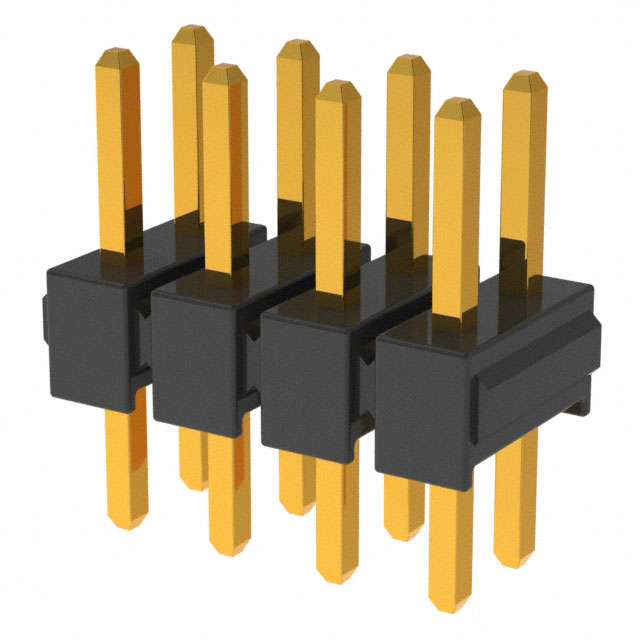

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG8T-0831 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG8T-0831 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG8T-0831 |
|---|---|
| Manufacturer | Omron |
| Description | JUMPER PLUG 8POS DOUBLE ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $0.124 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG8T-0831 | Manufacturer | Omron |
|---|---|---|---|
| Description | JUMPER PLUG 8POS DOUBLE ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 191730 pcs | Data sheet | XJ8,XG8S,XG8T Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XG8 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.386" (9.80mm) |
| Other Names | XG8T0831 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass, Nickel |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.169" (4.30mm) |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
