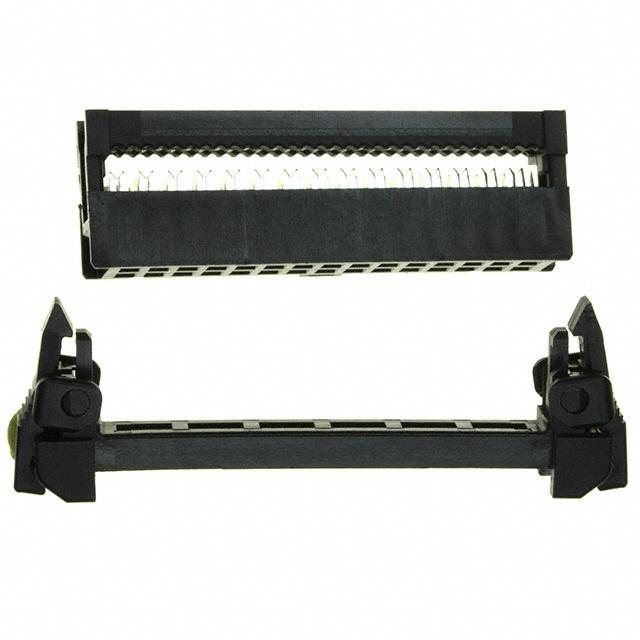

XG4M-3030-U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG4M-3030-U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG4M-3030-U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG4M-3030-U |
|---|---|
| Manufacturer | Omron |
| Description | CONN SOCKT 30POS STRN RLF W/LOCK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $1.308 | $1.255 | $1.151 | $1.098 | $1.046 | |
| 280 pcs | 560 pcs | 1050 pcs | 2520 pcs | ||
| $0.915 | $0.889 | $0.758 | $0.756 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG4M-3030-U | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN SOCKT 30POS STRN RLF W/LOCK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45061 pcs | Data sheet | XG4 Series Datasheet |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG | Series | XG4 |
| Row Spacing | 0.100" (2.54mm) | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | OR996 XG4M-3030-U BY OMZ XG4M3030U XG4M3030U-ND XG4M3030UBYOMZ |
| Number of Rows | 2 | Number of Positions | 30 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through, Polarizing Key, Strain Relief | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | 30 Position Rectangular Receptacle Connector IDC Gold 28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | IDC |
