XG4H-3431-1

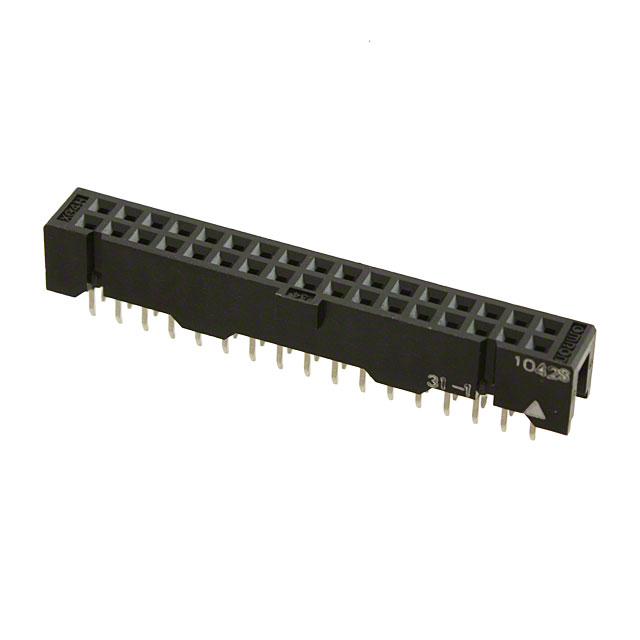

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG4H-3431-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG4H-3431-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG4H-3431-1 |
|---|---|
| Manufacturer | Omron |
| Description | CONN SOCKET 34POS PRESS FIT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.817 | $1.746 | $1.455 | $1.237 | $1.055 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | XG4H-3431-1 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN SOCKET 34POS PRESS FIT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34808 pcs | Data sheet | XG4 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 300VAC |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Series | XG4 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | OR104 XG4H-3431-1-ND XG4H34311 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 9.7mm, 10.1mm | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.283" (7.19mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Latch Holder | Detailed Description | 34 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
