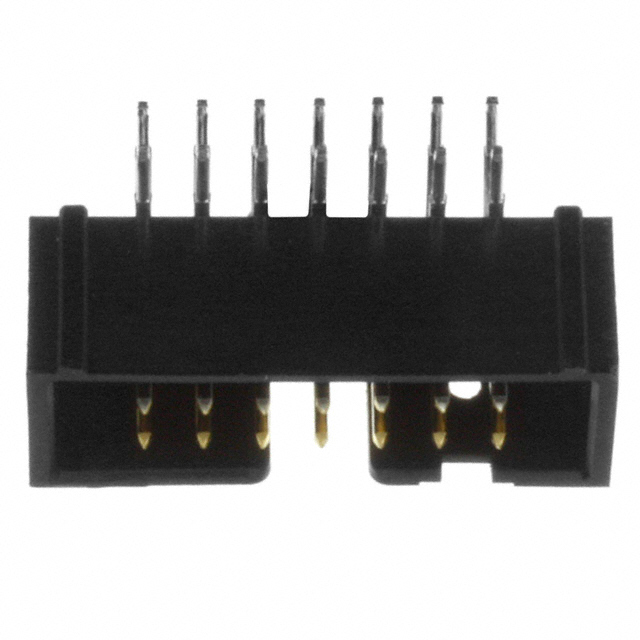

XG4C-1434
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG4C-1434 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG4C-1434 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG4C-1434 |
|---|---|
| Manufacturer | Omron |
| Description | CONN PLUG 14POS 3A RT ANGL DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.479 | $0.433 | $0.371 | |||
| 600 pcs | 1080 pcs | 5040 pcs | |||
| $0.31 | $0.265 | $0.255 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG4C-1434 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN PLUG 14POS 3A RT ANGL DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73374 pcs | Data sheet | XG4 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | XG4 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | OR985 XG4C1434 XG4C1434-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.323" (8.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass, Nickel |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
