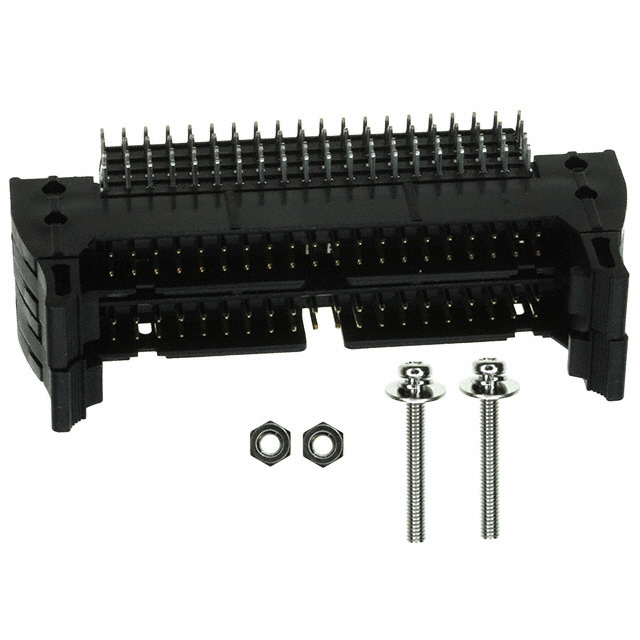

XG4A-4039-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG4A-4039-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG4A-4039-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG4A-4039-A |
|---|---|
| Manufacturer | Omron |
| Description | CONN PLUG 40POS 3A 300V R/A DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 28 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $4.42 | $3.918 | $3.416 | $2.914 | $2.902 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | XG4A-4039-A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN PLUG 40POS 3A 300V R/A DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10574 pcs | Data sheet | XG4 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | XG4 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | OR960 XG4A4039A XG4A4039A-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40, 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.669" (17.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange, Mounting Hardware | Fastening Type | Latch Lock/Eject Hooks, Long |
| Detailed Description | Connector Header Through Hole, Right Angle 40, 40 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass, Nickel | Contact Length - Post | - |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Stackable (2) |
| Applications | - |
