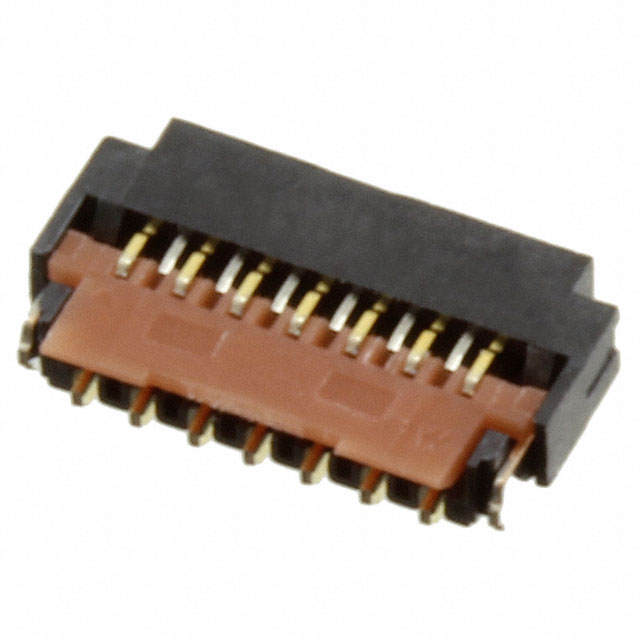

XF3Z-1355-31B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF3Z-1355-31B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF3Z-1355-31B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF3Z-1355-31B |
|---|---|
| Manufacturer | Omron |
| Description | FPC CONN 13POS .3MM SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF3Z-1355-31B | Manufacturer | Omron |
|---|---|---|---|
| Description | FPC CONN 13POS .3MM SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4774 pcs | Data sheet | XF3Z Datasheet~ |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF3Z |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | XF3Z-1355-31B BY OMZ XF3Z135531B XF3Z135531BBYOMZ Z5459TR |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 13 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Rotary Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Black | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FPC | Features | Solder Retention |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 13 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Actuator Color | Brown |
