XF3M-2415-1B

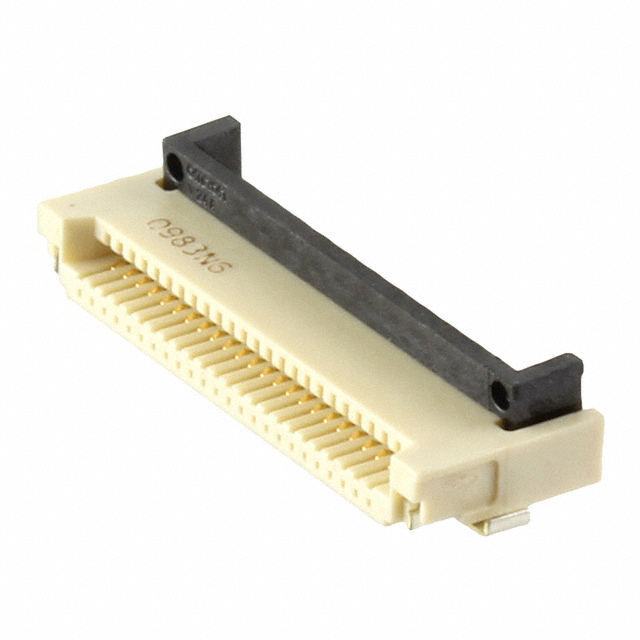

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF3M-2415-1B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF3M-2415-1B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF3M-2415-1B |
|---|---|
| Manufacturer | Omron |
| Description | CONN FFC FPC 24POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.739 | $0.67 | $0.629 | $0.601 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.574 | $0.519 | $0.478 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF3M-2415-1B | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FFC FPC 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71075 pcs | Data sheet | XF3M Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF3M |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | OR1215CT | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 24 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 24 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
