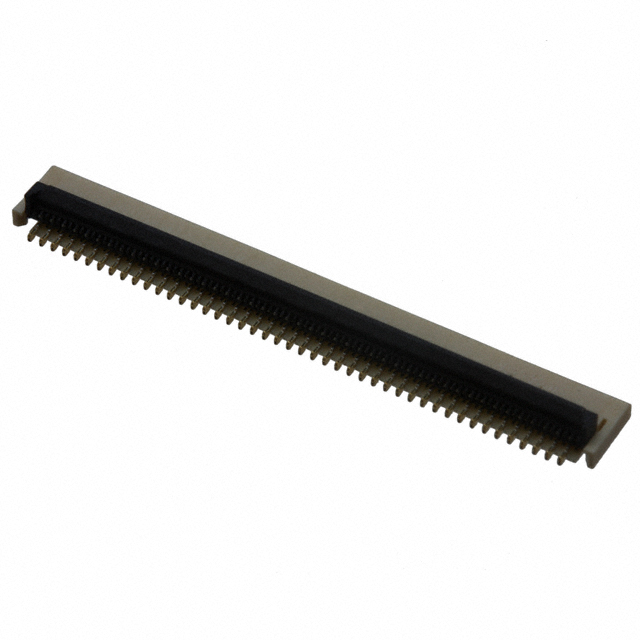

XF3E-9045-31AE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF3E-9045-31AE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF3E-9045-31AE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF3E-9045-31AE |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 90POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | XF3E-9045-31AE | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 90POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5489 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF3E |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | OR1032CT | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 90 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.044" (1.12mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 90 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
