XF2W26151AR100BYOMZ

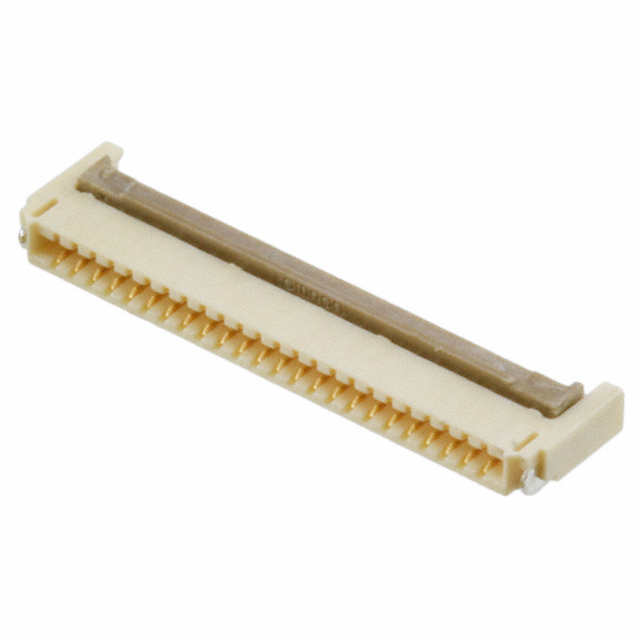

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2W26151AR100BYOMZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2W26151AR100BYOMZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2W26151AR100BYOMZ |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 26POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2W26151AR100BYOMZ | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 26POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5542 pcs | Data sheet | XF2W SeriesXF Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2W |
| Pitch | 0.020" (0.50mm) | Packaging | Bulk |
| Other Names | XF2W-2615-1A-R100 BY OMZ | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 26 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.044" (1.12mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 26 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Brown |
