XF2R09154A

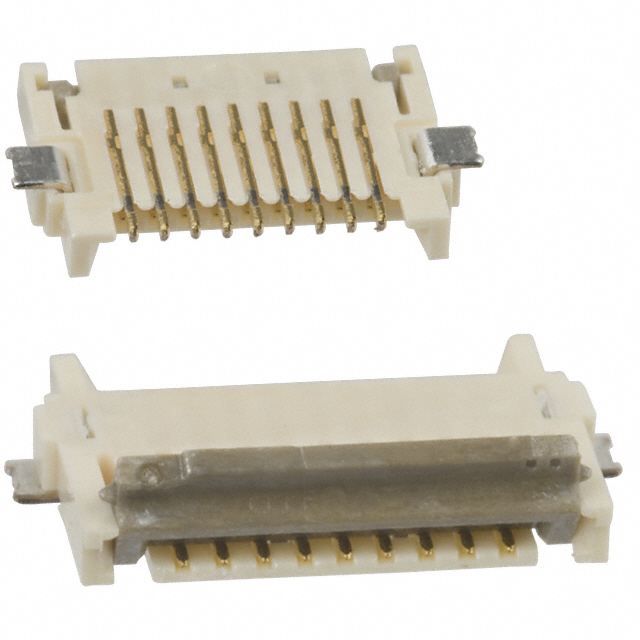

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2R09154A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2R09154A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2R09154A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 9POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2R09154A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 9POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5465 pcs | Data sheet | XF2R |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2R |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | OR707CT | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Natural |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.12mm |
| Detailed Description | 9 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.3A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tabbed | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Brown |
