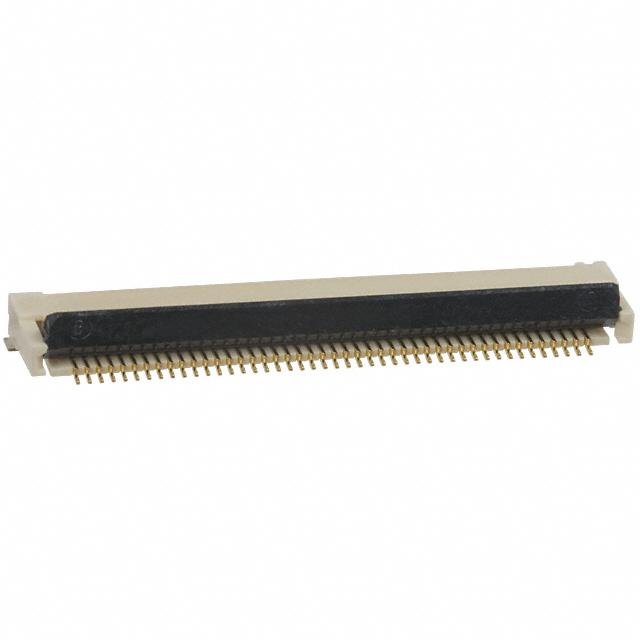

XF2M-4515-1A-R100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2M-4515-1A-R100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2M-4515-1A-R100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2M-4515-1A-R100 |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 45POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | 300 pcs | 500 pcs | 1000 pcs | 2500 pcs |
|---|---|---|---|---|---|
| $1.372 | $1.20 | $1.166 | $0.995 | $0.991 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2M-4515-1A-R100 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 45POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39785 pcs | Data sheet | XF2M Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2M |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | XF2M-4515-1A-R100 BY OMZ XF2M-4515-1A-R100 BYOMZ XF2M45151AR100 XF2M45151AR100BYOMZ |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 45 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.083" (2.10mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 45 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
