XF2M-1415-1A

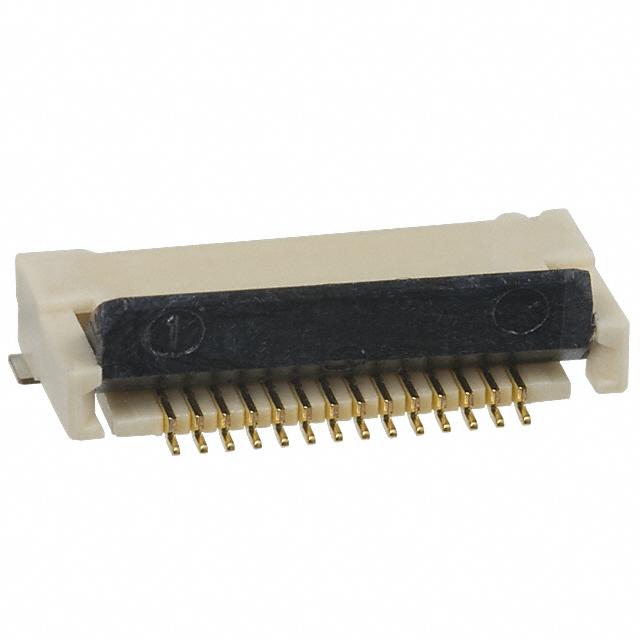

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2M-1415-1A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2M-1415-1A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2M-1415-1A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 14POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.491 | $0.445 | $0.417 | $0.399 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.381 | $0.345 | $0.318 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2M-1415-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 14POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71266 pcs | Data sheet | XF2M Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2M |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | OR755CT | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount, Right Angle |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.083" (2.10mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 14 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
